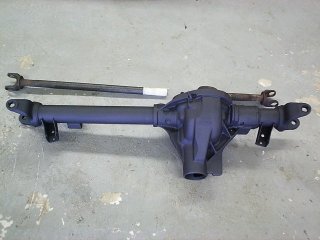

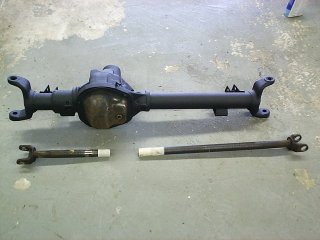

*Axle may not be the exact one pictured
For Sale:
Shortened front Dana 44 axle (Matches widetrack CJ). Comes with what's shown above, more available. Outer axleshafts, & knuckles included on a first come first serve basis. Can easily be converted to 5 on 5.5 bolt pattern with 73-76 Chevy/Dodge/Jeep spindles and 76-77 Ford hubs & rotors. Shock mounts and spring perches still in place, similar to Dana 30. Dana 30 knuckles and outers can be used with Scout II outer axle shafts to keep the 297x ujoints. See this article on shortening & other info: http://www.jeeptech.com/convaxle/d44f.html
Axles are professionally shortened by removing long side tube from chunk, cutting, then pressing back in & welding. Recess for inner seal is retained, as are shock & spring mounts. Spring mounts are 27.5" on center, top ball joints are roughly 44" apart, more measurements available upon request.
Can set your gears & install kit for $100.
